Introduction

The interior and exterior deck layout of “Skyfall” is the best I’ve experienced in any of the 17 mega yachts I’ve owned.

John Staluppi

Step aboard Skyfall and see this for yourself. Notable features include a sumptuous split level master suite with his and hers baths offering 270 degree panoramic views, a full beam VIP suite, 5 additional staterooms, an elevator, gorgeous sky lounge, a gym and ultra comfortable living area.

Charter friendly with a proven track record Skyfall ‘s guest amenities are highlighted by a plunge pool, large Jacuzzi, hot tub, multiple water toys nestled in a garage which doubles as a beach club, with deck space and interior volume that rivals 220 foot yacht.

Bahamas friendly draft of 8’6”, helicopter touch and go capabilities, 4600 NM range, and 21K top speed are all the ingredients necessary to explore remote coves, the open ocean and marina life with ease.

Skyfall is maintained with a true open checkbook policy, was treated to an interior refit recently, and is priced appropriately and aggressively at $29,500,000. The owner has agreed to consider pedigree trades, so don’t miss the opportunity to own this stellar offering.

SKYFALL has a contemporary and luxurious interior, finished in Honduran Mahogany, Maple Burl and Wenge, designed by the award winning Patrick Knowles, allowing for an elegant, yet comfortable atmosphere. She can accommodate a party of 17 in seven state rooms.

Highlights

NEW 5 year extended warranty on engines
New Props
‘Touch and go’ helicopter capability
New paint 2014
Three deck ‘wheel chair capable’ elevator including a wheelchair friendly stateroom

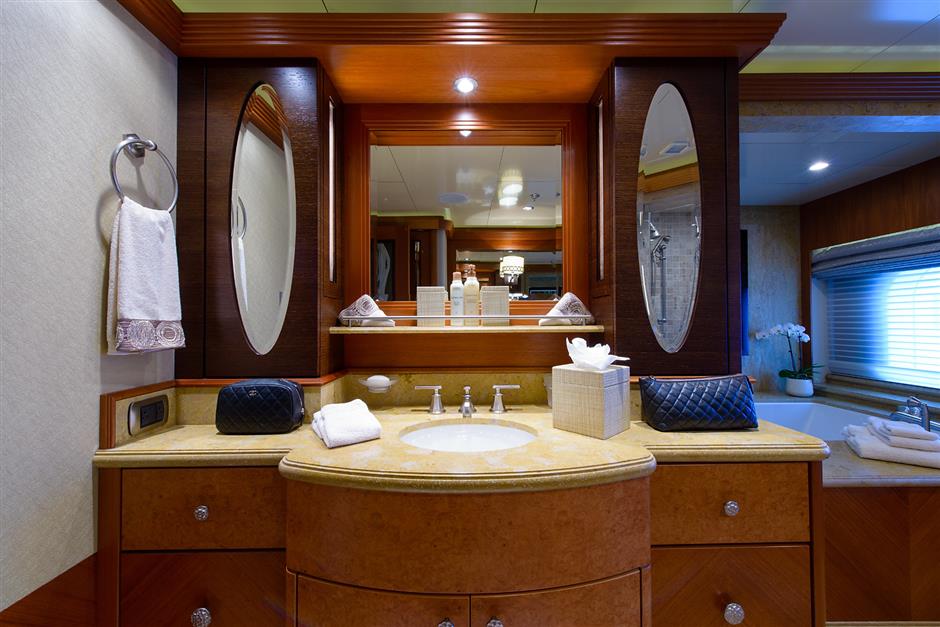

Stunning split-level, full beam master stateroom with 270 degree Panoramic windows
Gorgeous full beam VIP suite
Five additional guest staterooms to sleep a total of seventeen
Convertible gym/guest stateroom
Jacuzzi and Pool suitable for children
Huge 3707 square feet of external deck space
Air conditioned sky lounge aft deck
Over 7200 square feet of internal volume

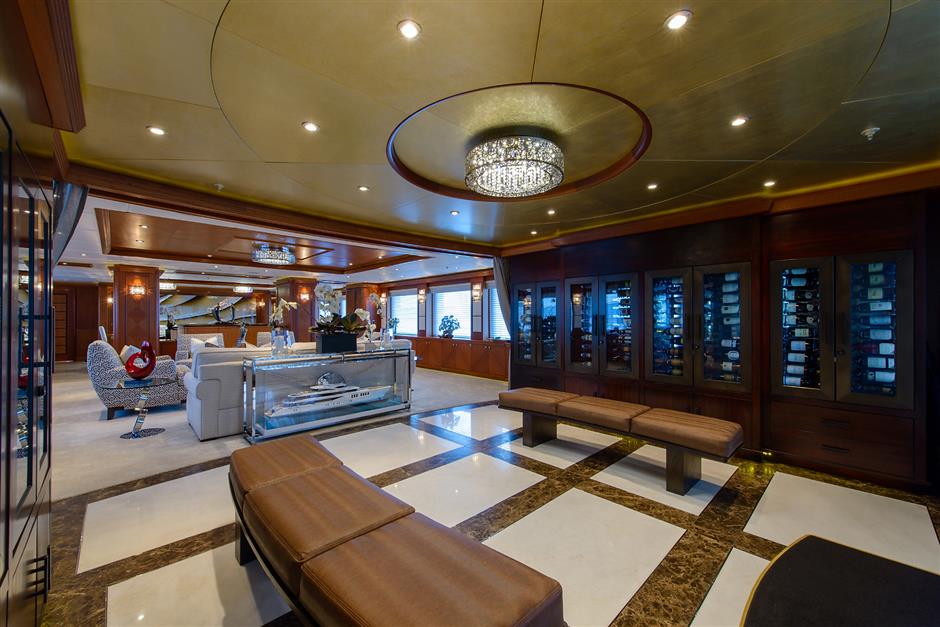

Stunning wine cellar
State of the art systems and engineering
Gorgeous Patrick Knowles interior that is the epitome of understated elegance and sophistication, exquisitely finished in Honduras Mahogany, Maple Burl and Wenge

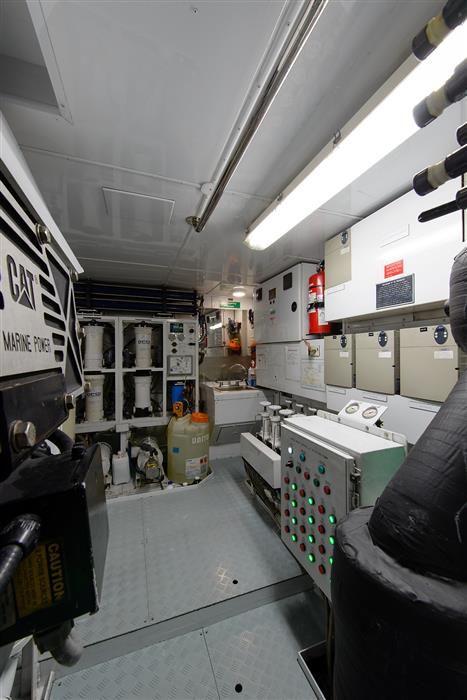

Machinery

Main Engines:
Engine Type: (2) Caterpillar 3516 HD, rated @3.384 hp @ 1800 rpm with automatic exhaust actuation below water line
NEW 5 year extended warranty on engines (9/15)
Engine Hours: call for current hours
Gearboxes for Main Engines: Reintjes, Ratio 3.080:1
Drive: Propeller
New Props 2015
Cruising:      18kts/1600RPM/214gph/1650 mi range
Economical: 10kts/850RPM/45gph/4350 mi range

Generators & Electricity

Output: Volts: 480, Phase: 3
Generators: (2) 235 kw, (1) 99 kw emergency: Northern Lights
Call for current hours on generators
Load bank installed 2014
Generator Fuel Consumption: 240 Gals max per day
Shore Power: Volts: 360 – 480, Phase 50 60
Shore Power Converter: Atlas ultra, 200 KVA

Air Conditioning

Type: Marine Air, 75 ton Chiller
Individual Marine Air fan coil units
Fresh air makeup: Approx. 800 cfm

Other Machinery

Watermakers: 2 x FCI Water makers, Inc.
9270 L/day each (2450 gallons)
Water heaters: Five Rheem/Ruud Eclipse Commercial 3phase
Stabilizers: Quantum QC 1800 XT: ZERO SPEED
Central hydraulic: Quantum Marine, “QuietPax” QIS210; 2 gear driven pumps plus 2
each 30 hp electric motors for “zero speed”
Bow Thruster: Quantum QT 200 hp hydraulic; 28″ tunnel with 26″ counter rotating wheels
Steering System: EMI
Fuel Oil Centrifuge: Alfa Laval MAB104
Fuel Oil Priming: 24v DC
Sewage System: Headhunter Tidal Wave Biological MSD
Fresh Water System: Head Hunter Subpaq Pumps, UV sterilization,
Bilge Water Filtration: Recovered Energies, BOSS 2TY – 107
Fuel Capacity: 22,000 gallons
Lube Oil Capacity: 645 gallons
Waste Oil Capacity: 511 gallons
Fresh Water Capacity: 3,900 gallons With Pentair 9500 Water softener
Sewage Tank Capacity: 300 gallons
Grey Water zero discharge: 2,000 gallons
Elevator: 46″ x 48″ Lift-Emotion elevator, wheelchair accessible two (2) person servicing three (3) interior decks

Communications and Navigation

Communication Systems:
VSAT 4006
Seatel 4006 V-Sat
2 VoIP lines
NERA Fleet 55
Furuno Felcom 15 Sat-C
Telephone System: Panasonic KX-TDA 200
SSB: Furuno FS1570
VHF Fixed: 2 x Furuno FM8800x (Bridge)
2 x Standard GX-5000 (Bridge & Crew mess)
VHF Handheld: 2 x Icom IC-M34
3 x MC Murdo R1 (GMDSS)
Cellular Phone System: 1 x Ericson W25 GSM
Telefax: Seatel Wave Call 4006

Navigation Systems

Radar: Furuno 96nm FR2137SBB S-Band Color
Furuno FAR2127BB 96nm X-Band Color
Gyrocompass: C-Plath Navigat-X Mk11
Magnetic Compass: Flux Gate PG 1000
Auto Pilot: C-Plath Navipilot 4000
Depth Sounder: Furuno FCV12000BB Color Echo sounder and B&G transducer
B&G Hydra 3000 Cruise Pack
GPS: 2 x Furuno GP 150
Ships Computer: 2 x Vei Seapc Pentium (Capt & Engineer)
Vei Mail Server
Laser Plotter: Transas 3000 On Vei Sea PC
Wind/Speed Log: B & G Hydra 3000 Cruise Pack 2X B&G 20/20
Navtex: Furuno NX700

Audio & Visual Equipment

Video Equipment:
TVs: 17 on board with kaleidoscope K6000
TV Receivers: 17 Direct TV receivers for USA
17 Direct TV receivers for Caribbean
17 Sky receivers for Mediterranean
TV system can be switched easily when changing from Europe to USA to Caribbean

Audio Equipment

Ship’s Central Audio: Creston CNX – RM CLV Throughout
Blue tooth central connection capabilities for IPHONE/IPAD.
Pandora streaming throughout yacht via central audio point.

Galley and Laundry

Main Galley Equipment:
Cooking Equipment: Eight burner stove with griddle – Vulcan
Ovens – 2 X Alto Shaam
E convection ovens (new)
Microwave Oven GE SCB1001KSS
4 burner Cook top
Refrigeration/Freezer: Liebherr CS 2062 / Delfield Refrigerator SSR1-S
Icemaker: Kitchen Aid KUIC15NLT
Dishwasher:1x Miele G7856 1x Electrolux commercial steam dishwasher
Trash Compactor: Kitchen Aid KUCS03FTSS

Crew Galley/Mess Equipment

Cooking Equipment: Microwave Oven – Whirlpool
Corian sinks
Sink Macerator – Kitchen Aid Model KCDS 250X3
Refrigeration/Freezer: Leibherr

Additional Galley Equipment

Dining Room: 2 x Wine coolers – ULine
Master Stateroom: 1 x Refrigerator drawer – ULine
Icemaker – ULine
Main Salon Pantry: Wine Cooler: 2 x GROTTO Custom Wine Cellars –
342 Bottle Capacity
Icemaker – Kitchen Aid
Sky lounge: Icemaker – ULine
Trash compactor – Kitchen Aid
Exterior Aft Main Deck: Icemaker – Viking
Sun Deck Icemaker – Viking
Under counter refrigerator – Viking
Stainless Steel Propane Barbeque Grill – Viking
Lazarette: Commercial Icemaker – 342lbs per day

Laundry Equipment:

Main Laundry Washer 3 x Miele Washers
3 Miele Dryers
1 x Meile roller press
1 x ironing board

Tenders and Toys

Tenders: 7m Novurania CL700 Diesel Engine with outdrive 320hp
MX550L Novurania W/115p outboard Yamaha
Novurania 420GS Tohatsu 15hp
* Refueling Tender via 100 ft hose from engine room
Dive Gear: Dive Compressor – Nitrox Solutions, Inc. NS 450
Toys: 2 x 2 person SeaDoo Sport Wave runners GTX;
2 x Sea Bobs

Gym and Exercise Equipment

Total Body Elliptical Machine
Treadmill
Portable Massage Table
Yoga mats, free weights, bench, medicine balls, assorted resistance bands, Swiss bands

Deck Equipment

Helicopter: Sun Deck capable of “touch and go” helicopter pad.
Reinforced deck with 3350 lbs gross.
Anchor Windlass: Bow – 630 ft. 20.5 mm galv. ABS Gr. 2 chain per side Muir VWC 18,000
Aft Warping Capstans: 2 x Muir MVC 8,000 hydraulic
Anchors: Bow – (2) 454 kg. (1000 lb) Balanced Davis HP Talon, Galvanized.
Boat Crane and Davits: 1 x 5,500 lb. Nautical Structures tender davit in the garage.
1 x Nautical Structures MCA approved 2,500 lb.@ 22 ft. telescoping davit on the flybridge
1 x Nautical Structures 1700 lb @15 ft telescoping davit on the bow
Passerelle:1 x hydraulic 22.5 ft. Marquip Passerelle; 2 x 10step manual shipside boarding ladders
24”; Nautical Structures.
Jacuzzi: 7 person hot tub; white
Elevator: 46” x 48” LiftEmotion elevator, 4 persons

Fire Fighting, Security and Safety Equipment

Fire Control System: Fixed fire suppression in galley hood; Ultra Fog high pressure water mist system; in
public spaces, accommodations and machinery spaces. Automatic fire curtains in
guest areas.
Fire Extinguishers: Portable extinguishers throughout
Personal Fire Equipment: Fireman’s suit, breathing apparatus, suit portable DC lights, smoke hoods, fire

Safety Equipment:

Life Rafts: (4) Zodiac, 16 person rafts, SOLAS A-Pack
Life Rings: 8
EPIRBS: Cat 1 and Cat 2

Security Equipment

Ship’s Monitoring: Palladium Simon Ship’s Monitoring System
CCTV System: Palladium SIMC-8-A CCTV Based Controller
6 x Pelco CCTV Cameras
Bell: Kahlenberg 12” chrome
Horn: Kahlenberg; 5 trumpet Figure F-# model 513 spun brass
Chrome plated

Square Footage

INTERIOR SQUARE FOOTAGE TOTALS: 7,217
EXTERIOR SQUARE FOOTAGE TOTALS: 3,707
